Add review instructions

The guide explains how to add custom review instructions for the entire project. Also, see the guide on how to configure CodeRabbit.

Path-based instructions

This section explains how to add custom code review instructions for the entire project or specific file paths in your project using glob patterns. Developers can provide tailored review guidelines based on the file paths. These instructions are needed only if you want CodeRabbit to follow specific instructions besides the standard review.

For example, you may want to enforce a style guide by file types or directories.

Default Blocked Paths

By default, CodeRabbit blocks certain file paths and extensions from being reviewed. If you want CodeRabbit to review any of these blocked paths, you can explicitly include them in your Path Filters configuration.

View complete list of default blocked paths

The following paths are blocked by default, grouped by category:

Build and Dependency Directories

Path Pattern	Description
!**/dist/**	Build output directory
!**/node_modules/**	Node.js dependencies
!**/.svelte-kit/**	SvelteKit build directory
!**/.webpack/**	Webpack build directory
!**/.yarn/**	Yarn cache directory
!**/.docusaurus/**	Docusaurus build directory
!**/.temp/**	Temporary files directory
!**/.cache/**	Cache directory
!**/.next/**	Next.js build directory
!**/.nuxt/**	Nuxt.js build directory

Lock Files

Path Pattern	Description
!**/package-lock.json	npm lock file
!**/yarn.lock	Yarn lock file
!**/pnpm-lock.yaml	pnpm lock file
!**/bun.lockb	Bun lock file
!**/*.lock	Generic lock files

Generated Code

Path Pattern	Description
!**/generated/**	Generated code directory
!**/@generated/**	Generated code directory (alternative)
!**/__generated__/**	Generated code directory (alternative)
!**/__generated/**	Generated code directory (alternative)
!**/_generated/**	Generated code directory (alternative)
!**/gen/**	Generated code directory (alternative)
!**/@gen/**	Generated code directory (alternative)
!**/__gen__/**	Generated code directory (alternative)
!**/__gen/**	Generated code directory (alternative)
!**/_gen/**	Generated code directory (alternative)

Binary and Compiled Files

Path Pattern	Description
!**/*.app	Application bundle
!**/*.bin	Binary file
!**/*.class	Java compiled class
!**/*.dll	Windows dynamic library
!**/*.dylib	macOS dynamic library
!**/*.exe	Windows executable
!**/*.o	Object file
!**/*.so	Shared object file
!**/*.wasm	WebAssembly file

Archives and Compressed Files

Path Pattern	Description
!**/*.bz2	Bzip2 archive
!**/*.gz	Gzip archive
!**/*.xz	XZ archive
!**/*.zip	ZIP archive
!**/*.7z	7-Zip archive
!**/*.rar	RAR archive
!**/*.zst	Zstandard archive
!**/*.tar	TAR archive
!**/*.jar	Java archive
!**/*.war	Web application archive
!**/*.nar	NAR archive

Media Files

Path Pattern	Description
!**/*.mp3	MP3 audio
!**/*.wav	WAV audio
!**/*.wma	WMA audio
!**/*.mp4	MP4 video
!**/*.avi	AVI video
!**/*.mkv	MKV video
!**/*.wmv	WMV video
!**/*.m4a	M4A audio
!**/*.m4v	M4V video
!**/*.3gp	3GP video
!**/*.3g2	3G2 video
!**/*.rm	RealMedia video
!**/*.mov	QuickTime video
!**/*.flv	Flash video
!**/*.swf	Flash animation
!**/*.flac	FLAC audio
!**/*.ogg	OGG audio

Images and Fonts

Path Pattern	Description
!**/*.ico	Icon file
!**/*.svg	SVG image
!**/*.jpeg	JPEG image
!**/*.jpg	JPEG image
!**/*.png	PNG image
!**/*.gif	GIF image
!**/*.bmp	BMP image
!**/*.tiff	TIFF image
!**/*.webm	WebM image
!**/*.ttf	TrueType font
!**/*.otf	OpenType font
!**/*.woff	Web Open Font Format
!**/*.woff2	Web Open Font Format 2
!**/*.eot	Embedded OpenType font

Documents and Data Files

Path Pattern	Description
!**/*.pdf	PDF document
!**/*.doc	Word document
!**/*.docx	Word document
!**/*.xls	Excel spreadsheet
!**/*.xlsx	Excel spreadsheet
!**/*.ppt	PowerPoint presentation
!**/*.pptx	PowerPoint presentation
!**/*.csv	CSV data file
!**/*.tsv	TSV data file
!**/*.dat	Data file
!**/*.db	Database file
!**/*.parquet	Parquet data file

Development and System Files

Path Pattern	Description
!**/tags	Tags file
!**/.tags	Tags file
!**/TAGS	Tags file
!**/.TAGS	Tags file
!**/.DS_Store	macOS system file
!**/.cscope.files	Cscope files
!**/.cscope.out	Cscope output
!**/.cscope.in.out	Cscope input/output
!**/.cscope.po.out	Cscope output
!**/*.log	Log file
!**/*.map	Source map
!**/*.out	Output file
!**/*.sum	Checksum file
!**/*.work	Work file
!**/*.md5sum	MD5 checksum file

Game and 3D Assets

Path Pattern	Description
!**/*.tga	Targa image
!**/*.dds	DirectDraw surface
!**/*.psd	Photoshop document
!**/*.fbx	FBX 3D model
!**/*.obj	OBJ 3D model
!**/*.blend	Blender file
!**/*.dae	COLLADA 3D model
!**/*.gltf	GL Transmission Format
!**/*.hlsl	HLSL shader
!**/*.glsl	GLSL shader
!**/*.unity	Unity scene
!**/*.umap	Unreal map
!**/*.prefab	Unity prefab
!**/*.mat	Material file
!**/*.shader	Shader file
!**/*.shadergraph	Shader graph
!**/*.sav	Save file
!**/*.scene	Scene file
!**/*.asset	Asset file

Python-specific Files

Path Pattern	Description
!**/*.pyc	Python compiled file
!**/*.pyd	Python dynamic module
!**/*.pyo	Python optimized file
!**/*.pkl	Python pickle file
!**/*.pickle	Python pickle file

Go-specific Files

Path Pattern	Description
!**/*.pb.go	Protocol buffer Go file
!**/*.pb.gw.go	Protocol buffer gateway Go file

Terraform Files

Path Pattern	Description
!**/*.tfstate	Terraform state file
!**/*.tfstate.backup	Terraform state backup

Minified Files

Path Pattern	Description
!**/*.min.js	Minified JavaScript
!**/*.min.js.map	Minified JavaScript source map
!**/*.min.js.css	Minified CSS

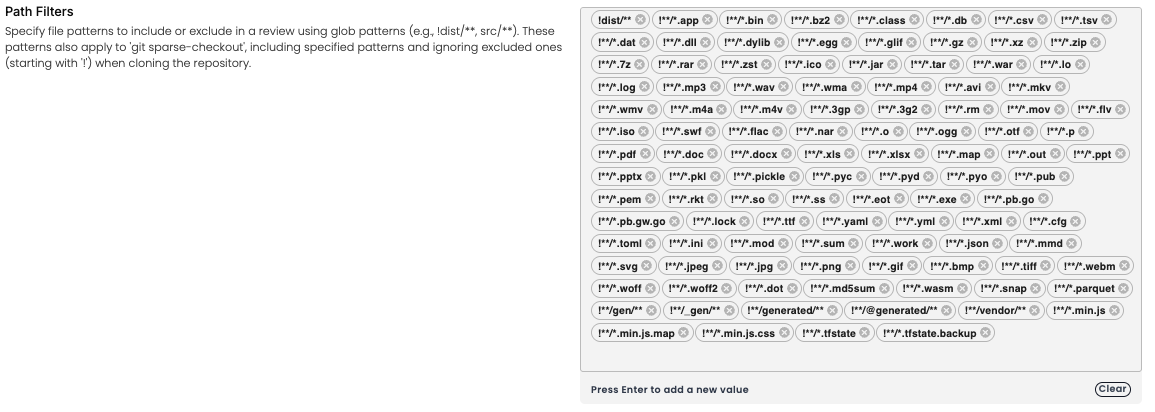

You can also edit your path filters directly in the UI by navigating to: Configuration > Review > Settings > Path Filters

Sample Usage

note

Paths accept glob patterns. See the minimatch documentation for more information.

#...
reviews:
  #...
  path_instructions:
    - path: "**/*.js"
      instructions: |
        Review the JavaScript code against the Google JavaScript style guide and point out any mismatches
    - path: "tests/**.*"
      instructions: |
        Review the following unit test code written using the Mocha test library. Ensure that:
        - The code adheres to best practices associated with Mocha.
        - Descriptive test names are used to clearly convey the intent of each test.

Abstract Syntax Tree (AST) based instructions

Pro Plan Feature

This feature is available exclusively as part of the Pro plan and is not included in the Lite plan. Please refer to our pricing page for more information about our plans and features.

CodeRabbit offers review instructions based on Abstract Syntax Tree (AST) patterns. Under the hood, CodeRabbit uses ast-grep to power this feature. ast-grep is written in Rust and uses the tree-sitter parser to generate the AST for popular languages. ast-grep is written and maintained by Herrington Darkholme.

tip

ast-grep Playground is quite effective in designing and testing AST rules on source code snippets. You can access the playground here.

note

The additional context provided by this feature is only available during the automated code review process, and it's not available in the chat.

Moreover, this feature is only recommended for advanced users as there is a learning curve involved.

note

Deep dive into AST patterns and ast-grep rules

• Abstract Syntax Tree (AST) Wikipedia article
• ast-grep official documentation for detailed guides.

This section explains how to add custom code review instructions using ast-grep rules. ast-grep is a tool used for searching code using abstract syntax trees (AST) patterns.

By default, you can add ast-grep rules by following these steps:

1. Create a directory that keeps all the ast-grep rules in your project directory.
2. Add individual .yaml files for each ast-grep rule within the newly created directory.
3. Ensure that each .yaml file contains the necessary ast-grep rule configurations.
4. Ensure that all rules contains a message property, that will be used in the review process.
5. Add the rules' directory to the .coderabbit.yml file under tools.ast-grep configuration.
6. Optionally, you can add packages property to the configuration to specify the packages that should be installed before running the ast-grep tool. Please read the packages section for detailed information.

#...
reviews:
  #...
  tools:
    ast-grep:
      essential_rules: true # option to enable essential security rules
      rule_dirs:
        - "custom-name"
      packages:
        - "myorg/myawesomepackage" # custom package name following the format organization/repository
  #...

The rule object

Rule object is the core concept of ast-grep rule system and every other feature is built on top of it.

Below is the full list of fields in a rule object. Every rule field is optional and can be omitted, but at least one field should be present in a rule. A node will match a rule if and only if it satisfies all fields in the rule object.

rule:
  # atomic rule
  pattern: "search.pattern"
  kind: "tree_sitter_node_kind"
  regex: "rust|regex"
  # relational rule
  inside: { pattern: "sub.rule" }
  has: { kind: "sub_rule" }
  follows: { regex: "can|use|any" }
  precedes: { kind: "multi_keys", pattern: "in.sub" }
  # composite rule
  all: [{ pattern: "match.all" }, { kind: "match_all" }]
  any: [{ pattern: "match.any" }, { kind: "match_any" }]
  not: { pattern: "not.this" }
  matches: "utility-rule"

Rule Categories

To summarize the rule object fields above, we have three categories of rules:

• Atomic Rule: the most basic rule that checks if AST nodes matches.
• Relational Rule: rules that check if a node is surrounded by another node.
• Composite Rule: rules that combine sub-rules together using logical operators.

These three categories of rules can be composed together to create more complex rules.

The rule object is inspired by the CSS selectors but with more composability and expressiveness. Thinking about how selectors in CSS works can help you understand the rule object!

Read ast-grep > documentation for detailed guides.

Atomic rule

Atomic rule defines the most basic matching rule that determines whether one syntax node matches the rule or not. There are three kinds of atomic rule: pattern, kind and regex.

Official documentation guide on Atomic Rule

Relational rule

A relational rule defines the relationship between two syntax nodes. There are four kinds of relational rule: inside, has, follows and precedes.

All four relational rules accept a sub-rule object as their value. The sub-rule will match the surrounding node, while the relational rule itself will match the target node.

Official documentation guide on Relational Rule

rule:
  pattern: await $PROMISE
  inside:
    kind: for_in_statement
    stopBy: end

Composite rule

A composite rule defines the logical relationship between multiple sub-rules. There are three kinds of composite rule: all, any and not.

all

The all rule matches if all sub-rules match.

rule:
  all:
    - pattern: console.log('Hello World');
    - kind: expression_statement

any

any rule matches if any sub-rule matches.

rule:
  any:
    - pattern: var a = $A
    - pattern: const a = $A
    - pattern: let a = $A

not

not applies negation to a sub-rule. It matches if the sub-rule does not match.

rule:
  pattern: console.log($GREETING)
  not:
    pattern: console.log('Hello World')

Official documentation guide on Composite Rule

Reusing rule as utility

ast-grep chooses to use YAML for rule representation. While this decision makes writing rules easier, it does impose some limitations on the rule authoring. One of the limitations is that rule objects cannot be reused.

Local utility rule

Local utility rules are defined in the utils field of the config file. Utils is a string-keyed dictionary.

For example, the following config file defines a local utility rule is-literal:

utils:
  is-literal:
    any:
      - kind: string
      - kind: number
      - kind: boolean
rule:
  matches: is-literal

Global utility rule

Global utility rules are defined in a separate file. But they are available across all rule configurations in the project.

To create global utility rules, you need to have the rules directory created on the root of your project and another utils directory inside the root of your project.

my-awesome-project   # project root
  |- rules           # rule directory
  | |- my-rule.yml
  |- utils           # utils directory
  | |- is-literal.yml

Also, you need to add the rules and utils directories to the .coderabbit.yml file under tools.ast-grep configuration. The rules can also be inside a package. If you have a package that contains rules, you can add the package name to the packages field in the .coderabbit.yml file.

#...
reviews:
  #...
  tools:
    ast-grep:
      essential_rules: true
      rule_dirs:
        - "rules"
      util_dirs:
        - "utils"
      packages:
        - "my-awesome-org/my-awesome-package" # public repository that contains ast-grep rules
  #...

# is-literal.yml
id: is-literal
language: TypeScript
rule:
  any:
    - kind: "false"
    - kind: undefined
    - kind: "null"
    - kind: "true"
    - kind: regex
    - kind: number
    - kind: string

Official documentation guide on Utility Rule

Packages

A package is what allows you to share rules across multiple projects. Essentially, a package is a collection of ast-grep rules.

CodeRabbit provides a set of packages that you can use out of the box. You can also create your own packages and share them with the community or just use them within your organization.

Packages provided by CodeRabbit are:

• ast-grep-essentials: A set of essential security rules. Because we value security, this package gets its own property in the .coderabbit.yml file, to make it easier to install and not overwrite. Check the package repository for more information.

To use a package, you need to add the package name to the packages field in the .coderabbit.yml file.

#...
reviews:
  #...
  tools:
    ast-grep:
      essential_rules: true
      packages: # list of packages to install, in future coderabbit will provide a set of packages, beside the essentials one.
        - "my-awesome-org/my-awesome-package" # custom package name following the format organization/repository
  #...

Using custom package

Let's say that you have a public repository that contains ast-grep rules. You can add the package name to the packages field in the .coderabbit.yml file.

Requirements for a package:

• It should be a public repository

• It contains rules that follow the ast-grep rule format

• It has the following folder structure:

  my-awesome-project   # project root
    |- rules           # rule directory
    | |- my-rule.yml
    |- utils           # utils directory
    | |- is-literal.yml

  rules and utils directories are keywords, and it should be the same. Inside each directory, the structure is up to you. You can also have any other root directories or files beside the two shown above.

• Name should be in the format organization/repository

#...
reviews:
  #...
  tools:
    ast-grep:
      packages:
        - "my-awesome-org/my-awesome-package"
  #...

Multiple Languages Support

CodeRabbit supports multiple programming languages for defining ast-grep rules.

• JavaScript
• Typescript
• C#
• Golang
• Java
• Kotlin
• Rust
• Python
• C

Below are examples of ast-grep rules in different languages:

JavaScript

Importing files without an extension is not allowed

id: find-import-file
language: js
message: "Importing files without an extension is not allowed"
rule:
  regex: "/[^.]+[^/]$"
  kind: string_fragment
  any:
    - inside:
        stopBy: end
        kind: import_statement
    - inside:
        stopBy: end
        kind: call_expression
        has:
          field: function
          regex: "^import$"

No console.log allowed except console.error on the catch block

id: no-console-except-error
language: typescript
message: "No console.log allowed except console.error on the catch block"
rule:
  any:
    - pattern: console.error($$$)
      not:
        inside:
          kind: catch_clause
          stopBy: end
    - pattern: console.$METHOD($$$)
constraints:
  METHOD:
    regex: "log|debug|warn"

C

In C, there is no built-in support for object-oriented programming, but some programmers use structs and function pointers to simulate classes and methods.

However, this style can have some drawbacks, such as:

• Extra memory allocation and reallocation for the struct and the function pointer.
• Indirection overhead when calling the function pointer.

A possible alternative is to use a plain function call with the struct pointer as the first argument.

id: method_receiver
language: c
rule:
  pattern: $R.$METHOD($$$ARGS)
transform:
  MAYBE_COMMA:
    replace:
      source: $$$ARGS
      replace: "^.+"
      by: ", "
fix: $METHOD(&$R$MAYBE_COMMA$$$ARGS)
